Part Number:WS249-PN58C
Product Reviews:

Availability:

In Stock
£49.50 (£41.25 Ex VAT)
↓ How to find? Spring Chart ↓
Unit Quantity: Each
Description

This Garador Mk3c spring and pulley assembly is to suit Garador garage door with an overhead springbox (manufactured pre-1999). Will also include doors manufactured by Westland Engineering and Catnic.

This spring is not to be confused with similar side springs found on the later Garador C-type model door manufactured between 1999 and 2002.

Note: If the existing springbox does not have a removable plastic cover it is not recommended to carry out repairs and a new box unit should be purchased instead. Click here to view springbox options.

It is always recommended to replace springs in pairs so that the door remains balanced.
Please note: If replacing only one spring, our standard product warranty does not apply. Please see terms and conditions for more information.

How can I identify which spring strength I need?

First, check the existing springs for coloured bands of paint around the spring. If the existing springs are too rusted to make out any markings, you can use the Spring Table further down the page to identify the required strength. To do this make a note of the width and height of the door along with the garage door style or pattern.

What are the different types of these Mk3C Garage Door Springs?

There are two lengths of spring which are 30 inches and 36 inches long respectively. However, within those, there are also multiple different variants. They are usually marked with coloured bands as mentioned above to help you identify them. We have listed them below.

30 Inches Long Spring (Original spring number/markings)

  • PN58 markings 1 x Silver – Garador current part number 4739
  • PN167 markings none – Garador current part number 4743

36 Inches Long Spring (Original spring number/markings)

  • PN57/1 markings 1 x Blue band – Garador current part number 4740
  • PN55/2 markings 3 x Blue band – Garador current part number 4742
  • PN56/1 markings 2 x Blue band – Garador current part number 4741
  • PN108 markings 2 x Orange band – Garador current part number 4745
  • PN115 markings 2 x Silver band – Garador current part number 4744
  • PN150 markings none – Garador current part number - 4746
  • PN155 markings 1 x Orange band – Garador current part number 4747

How can I replace my Garador spring and pulley assembly?

The process for changing a garage door spring is the same as carrying out a cable replacement. If you click here, you will be taken to a PDF of the fitting instructions for the Mk3c cables.

However please note that if your springbox does not have a removable cover we recommend that you do not carry out any repairs. The modern springboxes included a couple of safety features not present on the older models, which includes slots in the box to allow springs to be locked under tension, and the removable plastic cover allows for safer access to the springs.

How can I contact WS Garage Door Spares?

The best way to reach us promptly is to simply give us a call at 01704 331 705. This will let you reach our customer service team who will then take your query forward. Whether you need help identifying the correct spring or are looking for advice we will have you covered.

If you are hoping to send in images we also have you covered. Either email us at sales@wsgaragedoorspares.com or message our WhatsApp on 07481342447. Sending in images helps us to identify the part.

Fitting Instructions

MK3C Spring Fitting Instructions

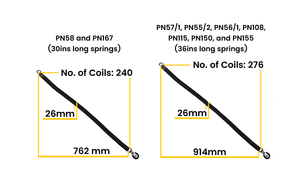

Specification

PN58 and PN167 (30ins long springs)

Spring Length 762 mm
Spring Diameter 26 mm
No. of Coils 240
Spring Wire Diameter NA
Used on Door Type Single width



PN57/1, PN55/2, PN56/1, PN108, PN115, PN150, and PN155 (36ins long springs)

Spring Length 914 mm
Spring Diameter 26 mm
No. of Coils 276
Spring Wire Diameter NA
Used on Door Type Single width
Delivery & Returns

Delivery Costs

Delivery Service

Weight Cost Delivery Timescale
Economy Delivery
(UK mainland only)
0 - 200g £1.99 2-3 working days delivery via Royal Mail 48 (Untracked).
200g - 2kg £3.49

Standard Delivery
(UK mainland only)

< 200g £2.99 1 - 2 working days via Royal Mail 24 (untracked)
200g - 2kg £4.99
2k - 20kg £6.95 1 - 2 working days courier (Tracked)
20kg - 40kg £14.99
40kg - 60kg £19.99
60kg - 250kg £29.99

Express Delivery
(UK mainland only)

0 - 20KG £9.99 Next working day Courier (Tracked). Delivery Monday-Friday. Available for most items. Orders placed before 2pm.
20kg - 40kg £19.99
40kg - 60kg £29.99

Returns Policy

To return an unwanted order, please contact us within 14 days of receipt of delivery. Full returns information can be found here.

Steel Doors

Door size (W x H)

Georgian/Elite

Georgian/Elite

Beaumont/Elite

Beaumont/Elite

Cathedral/Elite

Cathedral/Elite

Carlton/Elite

Carlton/Elite

Salisbury/Elite

Salisbury/Elite

Horizon/Elite

Horizon/Elite

Chevron/Elite

Chevron/Elite

Parade White/Brown

Parade White/Brown

6'6" x 6'3" - - - PN58 - PN58 - -
6'6" x 6'6" PN167 - - PN58 - PN58 PN167 PN167
6'6" x 7'0" PN167 - - PN58 -

PN58

PN167 -
7'0" x 6'3" - - - N/A - - - -
7'0" x 6'6" PN57/1 PN55/2 PN55/2 PN58 PN55/2 PN58 PN57/1 PN57/1
7'0" x 7'0" PN150 PN155 PN155 PN55/2 PN155 PN57/1 PN55/2 PN155
7'3½" x 6'4" - - - PN57/1 - PN56/1 - -
7'5" x 6'3" - - - - - N/A - -
7'5" x 6'6" PN55/2 PN55/2 PN55/2 PN57/1 PN155 PN56/1 PN55/2 PN155
7'5" x 7'0" PN108 - - PN150 PN108 PN55/2 PN155 PN155
7'6" x 6'6" PN55/2 - - PN57/1 PN155 PN57/1 PN55/2 N/A
7'6" x 7'0" N/A PN155 PN155 N/A N/A N/A N/A N/A
7'8½" x 6'3" - - - N/A - N/A - -
7'8½" x 6'6" PN150 - - PN55/2 - PN155 PN55/2 -
7'8½" x 7'0" N/A - - PN155 - PN55/2 PN155 -
8'0" x 6'3" - - - N/A - N/A - -
8'0" x 6'6" PN150 - - PN55/2 PN150 PN115 - -
8'0" x 7'0" PN108 - - PN155 PN155 PN150 - PN155
8'2½" x 6'3" - - - N/A - N/A - PN108
8'2½" x 6'6" - - - PN150 - PN55/2 - -
8'2½" x 7'0" - - - PN155 - PN155 - -

Fibreglass Doors

Door size (W x H)

Stamford

Stamford

Arden (White)

Arden

Kenmore (Brown)

Kenmore

Derwent

Derwent

Swinton

Swinton

Clifton

Clifton

Oakham

Oakham

Woburn

Woburn

7'0" x 6'6" N/A PN55/2 PN55/2 N/A PN55/2 PN55/2 PN55/2 N/A
7'0" x 7'0" N/A PN55/2 PN55/2 N/A PN55/2 PN55/2 PN55/2 N/A
7'5" x 6'6" N/A PN155 PN155 N/A PN155 PN155 PN155 N/A
7'5" x 7'0" N/A PN155 PN155 N/A PN155 PN155 PN155 N/A

Timber Doors

Door size (W x H)

Chevron Cedar

Chevron Cedar

Vertical Cedar

Vertical Cedar

Sandhurst

Sandhurst

Cavendish

Cavendish



Wolsey

Wolsey

Seymour

Seymour

Tudor

Tudor

Horizontal Cedar

Horizontal Cedar

7'0" x 6'6" PN57/1 PN57/1 - - PN55/2 PN55/2 PN55/2 PN57/1
7'0" x 7'0" PN55/2 PN55/2 PN55/2 PN55/2 PN155 PN155 PN155 PN55/2
7'5" x 6'6" PN55/2 PN57/1 PN55/2 PN55/2 PN55/2 PN55/2 PN55/2 PN57/1
7'5" x 7'0" PN55/2 PN150 PN55/2 PN55/2 PN155 PN155 PN155 PN150
7'6" x 6'6" PN55/2 PN55/2 PN55/2 PN55/2 PN55/2 PN55/2 PN55/2 -
7'6" x 7'0" - PN55/2 - - PN55/2 PN55/2 PN55/2 -
